This hub guides you through each part of the assignment. Open the stage you are working on for requirements, probing questions, scaffolding, reminders and a section-specific example.
Your vehicle body must fit the supplied Scorpio plywood base.
Check the real base measurements before sketching, CAD modelling or manufacturing. A visually impressive design cannot be built if it is too large for the platform.
Important dates
Project milestones
The live panel above updates automatically. These are the formal checkpoints for the assignment.
Each numbered stage opens targeted support for that section only. You can also send someone a direct link to any stage.
Help-document guide
What strong folio evidence looks like
Use these prompts with the official task sheet and folio template. They turn the project brief into practical evidence you can show in each design-process phase.
Core assignment support
Performance targetTow at least 1 kg and travel at least 0.5 m/s when not towing.What you submitA completed engineering design-process folio and a working vehicle prototype.Available technologiesScorpio car kit, Fusion 360, 3D printing, LightBurn, laser cutting and suitable hand tools.Fixed constraintThe manufactured body and systems must fit the supplied Scorpio base and keep the wheels, switch, wiring and tow point clear.
Frame the problem
Write a useful “How might we…” statement
How might we [intended action] for [primary user] so that [desired effect]?
Keep the user, towing purpose and measurable performance needs visible.
Balance considerations
Look beyond appearance
Consider aesthetic, cultural, economic, social and technical factors. Explain any trade-off rather than pretending every feature can be maximised.
Technical factors include function, sustainability, dimensions and ergonomics.
Make criteria measurable
State the criterion and justify it
Criteria may address whether a design is innovative, useful, aesthetic, accessible or sustainable, but each one needs a measurable test and a reason.
“Looks good” is not measurable. Define the evidence that would prove success.
Develop real alternatives
Change the engineering idea
Use SCAMPER prompts—substitute, combine, adapt, modify, put to another use, eliminate or rearrange—to create meaningfully different concepts.
Annotate why each concept might work, what could fail and how it differs from the others.
Select materials with evidence
Compare relevant properties
Use properties such as strength, stiffness, mass, toughness, manufacturability and cost to explain why a material suits a component.
A property chart is evidence only when you connect it to the actual job the component must do.
Communicate the design
Show development, not just a final picture
Include annotated concepts, justified selection, refinements, dimensions, CAD evidence and prototype-test results.
Your folio should make the reasoning between each design decision visible.
Optional extension pathway
Optimise one variable
Finish the core task first. Then choose one vehicle variable and investigate it across Explore, Develop, Generate and Evaluate.
Choose one pathway — not every task
Best overall extension
Which configuration gives the best balance of speed and towing ability?
Choose gear ratio, wheel diameter, drive-wheel position, vehicle mass or weight distribution. Predict what will happen, change only that variable, test systematically and justify the best configuration using evidence.
Gear ratioWheel diameterFWD or RWDVehicle massWeight distribution
PredictState how the change should affect speed and towing.
ControlChange one variable and keep the others consistent.
RepeatComplete at least three trials for every configuration.
ProcessCalculate averages and graph the results.
ExplainUse engineering science to explain the pattern.
RecommendDefend the best configuration using evidence.
ExploreBuild the evidence before designing
Compare three real towing vehicles and explain why their gearing, wheel size, mass distribution and drivetrain suit towing.
Create extra measurable criteria for stability, reliability, manufacturability, battery access or component protection.
Rank the criteria and justify which ones matter most.
Annotate the vehicle as interacting systems: structure, drivetrain, electrical system, wheels, tow connection and Scorpio base.
Calculate the wheel RPM needed to reach 0.5 m/s for different possible wheel diameters.
Design a fair test plan, including controlled variables, repeated trials and a results table.
DevelopCompare genuinely different concepts
Create three genuinely different drivetrain concepts—not cosmetic variations.
Use a weighted decision matrix to compare the concepts.
Compare front-wheel drive and rear-wheel drive for traction, weight distribution and towing.
Predict the speed–torque trade-off for different gear ratios.
Create a parametric Fusion 360 model so wheel size or key dimensions can be changed easily.
Create an exploded assembly or dimensioned engineering drawing.
Investigate whether moving the battery or motor changes traction on the drive wheels.
Generate & testCollect performance evidence
Test several gear ratios and produce a load-versus-speed graph.
Find the maximum load the vehicle can tow reliably—not just once.
Compare predicted performance with actual performance.
Calculate the percentage difference between theoretical and experimental results.
Test reliability across repeated runs.
Analyse a failure, identify its cause and redesign the affected component.
Optimise the design while limiting total mass or the number of materials used.
EvaluateInterrogate the evidence
Why was actual performance different from calculated performance?
Where was energy lost through friction, wheel slip or drivetrain inefficiency?
Which design decision had the greatest effect?
Does the evidence actually prove the vehicle is reliable?
What would need to change if the load increased to 1.5 kg?
Which result may be anomalous, and should it be included?
What trade-off did you accept between speed and towing ability?
Fusion 360 workshop
Choose the tutorial that matches the help you need
Every tutorial is optional. Relevance tags show how directly each resource supports this vehicle assignment.
Before you begin CADModel the 185 mm × 100 mm plywood base boundary first.
Keep the central wire and battery openings clear, protect wheel movement and leave the towing tab unobstructed.
10 · Scorpio base and build platform
Know your platform. Design to fit.

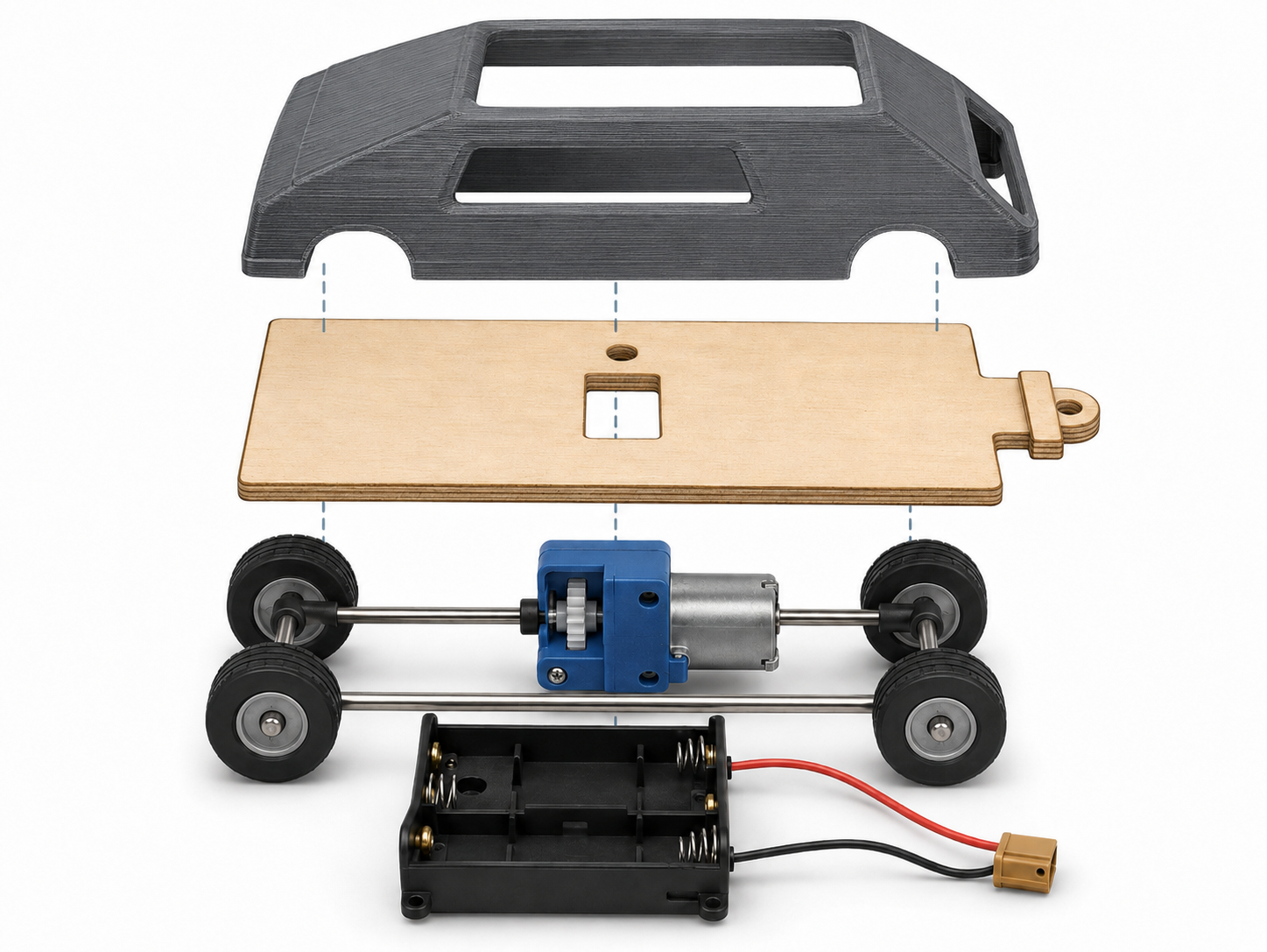

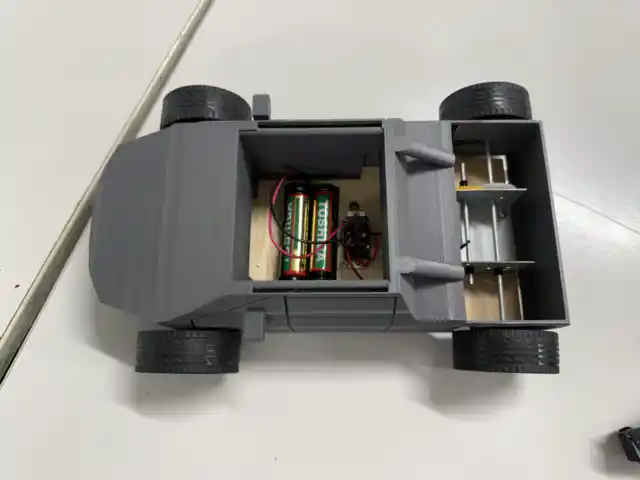

Exploded view — your vehicle system
Use the numbered component guide with the larger exploded drawing below. The marker numbers match the toolkit list and the designed body sits above the fixed build platform.
1BodyYour CAD design must fit the main base.
2Plywood baseApproximately 185 mm × 100 mm.
3WheelsMust rotate without rubbing.
4AxlesSupport the wheels and transfer rotation.
5GearboxBalances wheel speed and torque.
6MotorConverts electrical energy into rotation.
7Battery & switchKeep accessible through the centre openings.
8WiringKeep secure and away from moving parts.

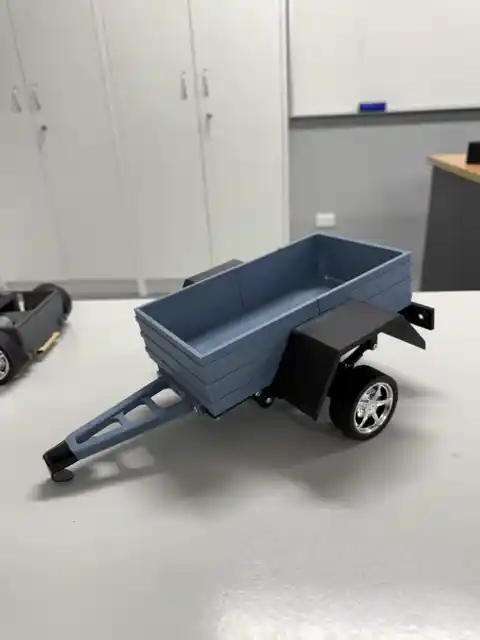

9Tow tabThe wheeled 1 kg trailer attaches here.
123456789Numbered view matches the toolkit list. Use it to identify where each system component sits in the build.
Critical size ruleEvery body part must remain within the 185 mm × 100 mm main base boundary. Do not block the centre openings or tow tab.
Formula book
Click a topic or search the full reference
Measure first. Model second. The Scorpio base is a fixed physical constraint, so check it throughout the design process—not only at the end.
